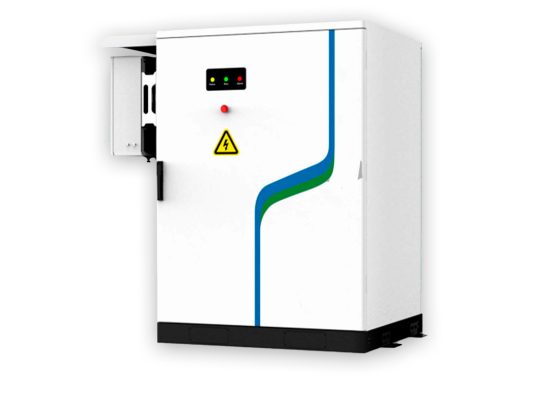

ENERGY CUBE
ENERGY CUBE 5 Ok W-100k W hh
KEY FEATURES: HIGH PERFORMANCE
El | COMMERCIAL & INDUSTRIAL ESS
INTEGRATED PV + ENERGY STORAGE SOLUTION: — —
Combines battery cells, BMS, inverters, fire protection, and thermal systems <— in one compact design.
Modular design supports parallel
expansion and customized configurations
for diverse applications. hr
HIGH EFFICIENCY:
Dynamic temperature regulation and low-
loss DC connections enhance energy
cycling efficiency.
APP INTELLIGENCE AND SECURITY CONTROL:
Monitor and optimize system performance via a
mobile app. Battery Safety Warnings and Fault
Switching Automatic Fire System Response.
COMMERCIAL AND PEAK SHAVING
COMMERCIAL AND PEAK SHAVING: PV INTEGRATION: | BACKUP POWER: INDUSTRIAL USE:
Charge during off-peak Store excess energy Ensure uninterrupted Ideal for offices, factories,
hours and discharge during from solar panels for operation during power and zero-carbon parks.
peak times to reduce future use. outages.
electricity costs.
Compact Design: Occupies only 1.2 m? per cabinet.
Reliable Performance: High-quality battery cells with enhanced safety features.
Versatile Power Source: Compatible with photovoltaic modules and diesel generators.
Long Lifespan: Designed for 6,000 cycles with advanced fire protection systems.
Pe J THE POWER Ss

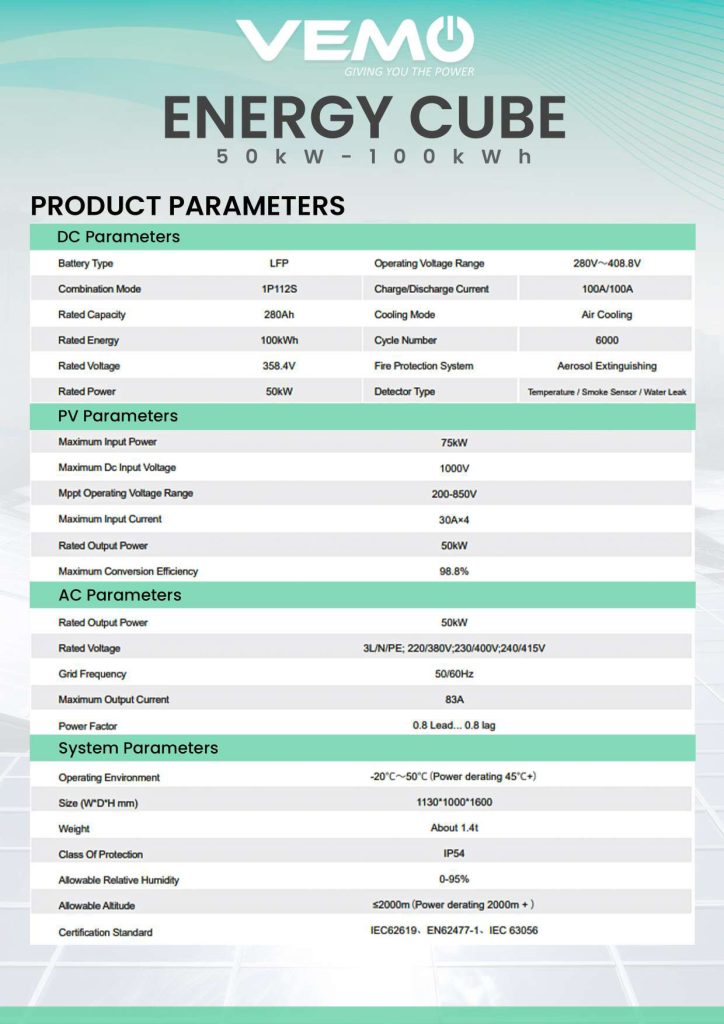

PRODUCT PARAMETERS
Battery Type LFP Operating Voltage Range 280V~408.8V
Combination Mode 1P112S Charge/Discharge Current 100A/1004
Rated Capacity 280Ah Cooling Mode Air Cooling
Rated Energy 100kWh Cycle Number 6000
Rated Voltage 358.4V Fire Protection System Aerosol Extinguishing
Rated Power S5OkW Detector Type Temperature / Smoke Sensor / Water Leak
—PvParameters
Maximum Input Power 75kW
Maximum Dc Input Voltage 1000V
Mppt Operating Voltage Range 200-850V
Maximum Input Current 30Ax4
Rated Output Power SOkKW
Maximum Conversion Efficiency 98.8%
— ACParameters
Rated Output Power SOkKW
Rated Voltage SUNIPE; 220/380V;220/400V;240/415V
Grid Frequency 50/60Hz
Maximum Output Current 834
Power Factor 0.8 Lead… 0.8 lag
_— System Parameters
Operating Environment -20°C~50°C (Power derating 45°C+)
Size (W”D’H mm) 1130°1000°1600
Weight About 1.4t
Class Of Protection IP54
Alowable Relative Humidity 0-95%
Allovrable Altitude $2000m (Power derating 2000m + )
Certification Standard 1EC62619. EN62477-1. IEC 63056
ESS CONTAINER
5.016MWh
KEY FEATURES:
Liquid cooling ensures optimal LIQUID-COOLED ENERGY
performance and safety across
temperature ranges. STORAGE SYSTEM
